Orifice metering is used for measuring the flow rate of fluids, including liquids, gases, and steam, within pipelines. This technique operates on the principle of differential pressure measurement, which is fundamentally derived from Bernoulli's principle. At the heart of an orifice meter is the orifice plate, a thin disc with a precisely engineered hole in its center, which is installed perpendicularly into the flow path of a pipe. As the fluid encounters this obstruction, its flow area is constricted, causing an increase in velocity and a corresponding decrease in static pressure immediately downstream of the plate, particularly at a point known as the vena contracta. This pressure difference between the upstream and downstream sides of the orifice plate is measured by a differential pressure sensor. The magnitude of this measured differential pressure is directly proportional to the square of the flow rate. By applying established formulas that account for factors such as the orifice and pipe diameters, fluid density, and a discharge coefficient, the volumetric or mass flow rate of the fluid can be accurately calculated. Orifice meters are valued for their relative simplicity, cost effectiveness, and versatility in measuring a wide range of fluids across diverse industrial applications, despite the inherent permanent pressure loss they introduce into the system.
How it Works
Orifice Plate -
The core component of an orifice meter is the orifice plate. This is a thin, flat plate with a precisely machined hole (the "orifice") in its center. It's installed perpendicularly within a
pipeline, typically between
two flanges.
Flow Restriction and Pressure Drop - When fluid flows through the pipe and encounters the orifice plate, the flow area is constricted. To pass through the smaller opening of the orifice, the fluid's velocity must increase. According to Bernoulli's principle, an increase in fluid velocity is accompanied by a simultaneous decrease in its static pressure. Therefore, a pressure drop occurs across the orifice plate, with a higher pressure upstream of the plate and a lower pressure downstream.
Vena Contracta - Immediately downstream of the orifice, the fluid stream continues to contract to its smallest cross-sectional area, known as the "vena contracta," before gradually expanding to fill the pipe again. The lowest pressure point typically occurs at the vena contracta.

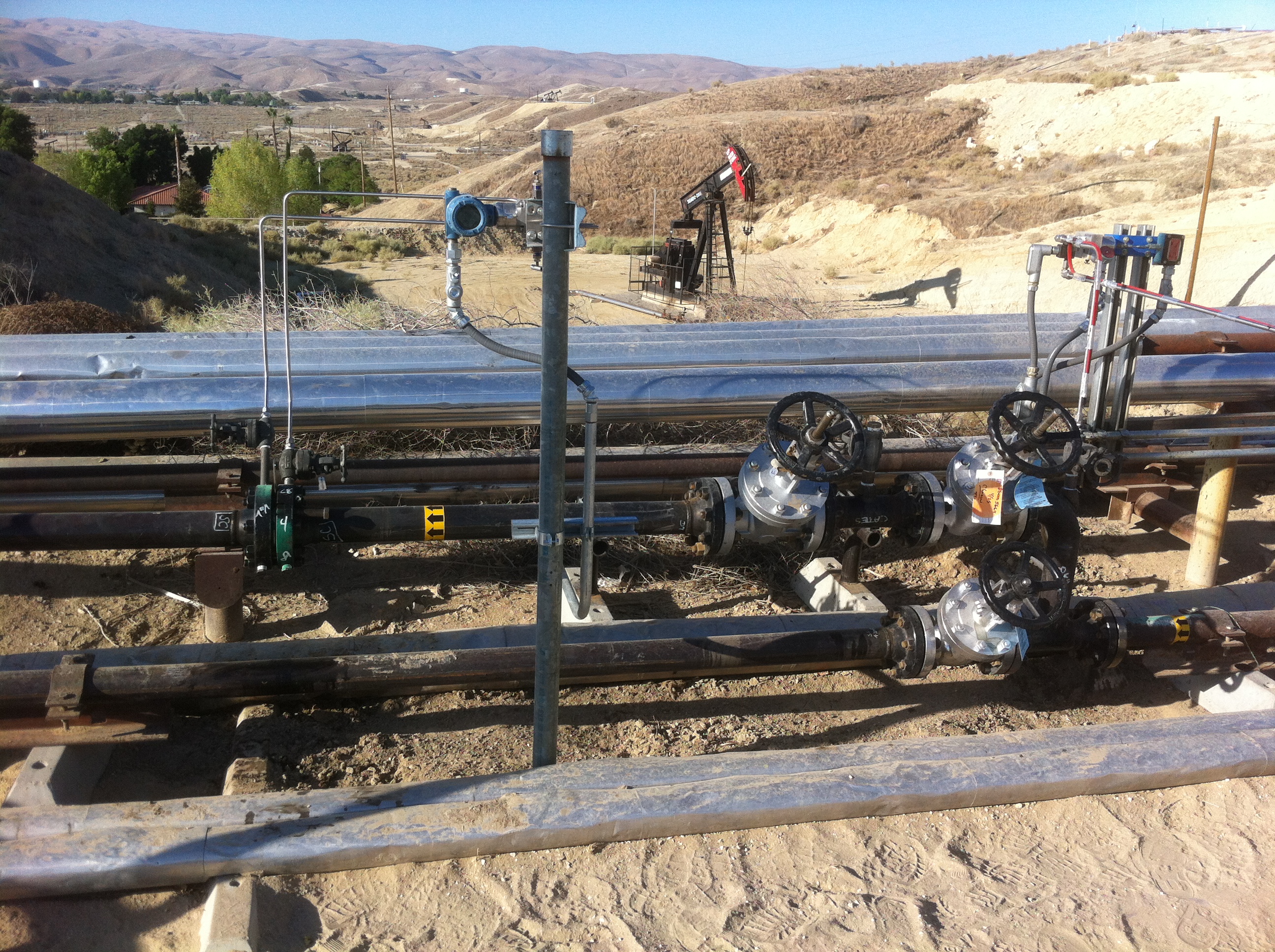

Differential Pressure Measurement - Two pressure taps are installed: one upstream of the orifice plate and one downstream (often at or near the vena contracta). These taps are connected to a differential pressure sensing device, such as a manometer or a
differential pressure transmitter.
This device measures the difference in pressure between the upstream and downstream points.
Flow Rate Calculation - The magnitude of this differential pressure is directly related to the flow rate of the fluid. A larger pressure drop indicates a higher flow rate. By applying specific formulas derived from Bernoulli's principle the volumetric or mass flow rate can be accurately calculated.
Key Points about Orifice Metering
Pressure Loss - Orifice plates inherently create a permanent pressure loss in the system, which can impact energy efficiency.
Accuracy - While generally accurate, orifice meters require sufficient straight pipe runs upstream and downstream to ensure a stable flow profile for optimal accuracy.
Maintenance - Orifice plates can be susceptible to fouling or erosion over time, which may affect accuracy and require periodic cleaning or replacement.
