Right Cylinder

on . Posted in Solid Geometry

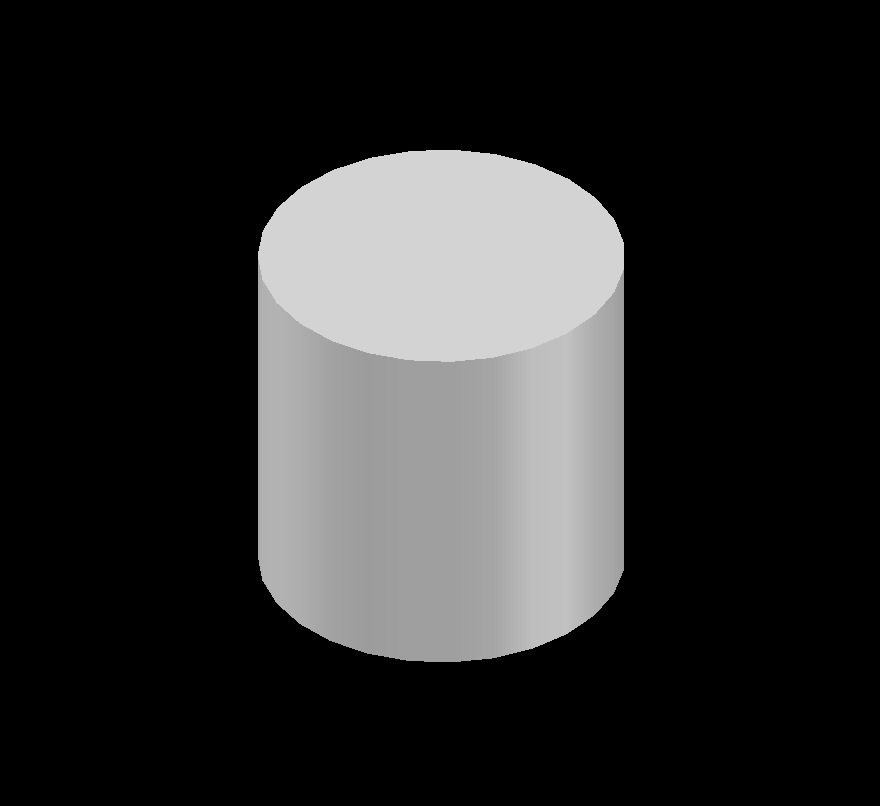

  • cylinder 2cylinder 3Right cylinder (a three-dimensional figure) has two circular parallel congruent bases.
  • 2 bases

Right Cylinder Index





Height of a Right Cylinder formula

\( h = V \;/\; \pi \; r^2\)
Symbol English Metric
\( h \) = height \( in \) \( mm \)
\( r \) = radius \( in \) \( mm \)
\( \pi \) = Pi \(3.141 592 653 ...\)
\( V \) = volume \( in^3 \) \( mm^3 \)



Lateral Surface Area of a Right Cylinder formula

\( A_l = 2\; \pi\; r\; h \)
Symbol English Metric
\( A_l \) = lateral surface area (side) \( in^2 \) \( mm^2 \)
\( h \) = height \( in \) \( mm \)
\( r \) = radius \( in \) \( mm \)



Radius of a Right Cylinder formula

\( r = \sqrt{  V \;/\; \pi \; h } \)
Symbol English Metric
\( r \) = radius \( in \) \( mm \)
\( h \) = height \( in \) \( mm \)
\( \pi \) = Pi \(3.141 592 653 ...\)
\( V \) = volume \( in^3 \) \( mm^3 \)



Surface Area of a Right cylinder formula

\( A_s = 2\; \pi\; r\;h+2\; \pi\; r^2 \)
Symbol English Metric
\( A_s \) = surface area (bottom, top, side) \( in^2 \) \( mm^2 \)
\( h \) = height \( in \) \( mm \)
\( r \) = radius \( in \) \( mm \)



Volume of a Right cylinder formula

\( V = \pi\; r^2\;h \)
Symbol English Metric
\( V \) = volume \( in^3 \) \( mm^3 \)
\( h \) = height \( in \) \( mm \)
\( r \) = radius \( in \) \( mm \)
