Spring Potential Energy

on . Posted in Fastener

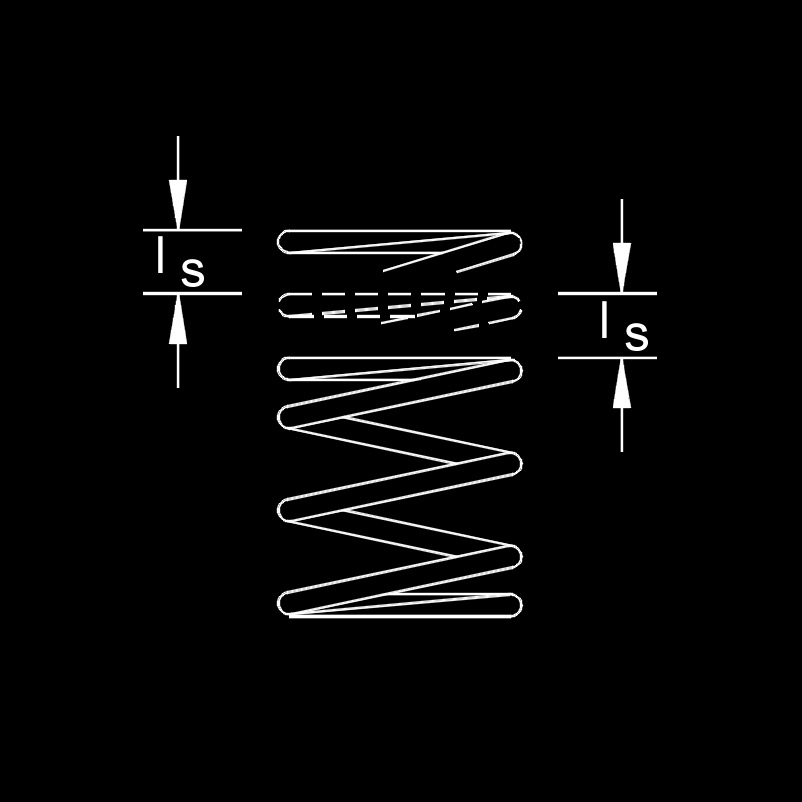

spring potential energy 1Spring potential energy, abbreviated as \(PE_s\), also called elastic potential energy, is the energy stored within a stretched or compressed spring.  When a spring is deformed from its equilibrium position, it possesses the ability to restore its original shape or position by exerting a restoring force.  This stored energy is referred to as spring potential energy.  The spring potential energy is directly proportional to the square of the displacement from the equilibrium position.  This means that the potential energy increases as the spring is stretched or compressed further.

Spring potential energy is a form of potential energy stored in the elastic deformation of the spring.  When the spring is released or allowed to return to its equilibrium position, this potential energy is converted back into kinetic energy or other forms of energy, depending on the system.  It is commonly utilized in various applications, including mechanical systems, springs in watches, shock absorbers, and other elastic elements.

It's important to note that the formula for spring potential energy assumes that Hooke's law is valid, which states that the restoring force exerted by a spring is directly proportional to the displacement from its equilibrium position.  In real-world scenarios, there may be deviations from Hooke's law at large deformations or in non-linear spring systems, requiring alternative approaches for calculating potential energy.


Spring Potential Energy formula

\(\large{ PE_s = \frac{1}{2} \;  k_s \; {l_s}^2    }\)     (Spring Potential Energy)

\(\large{ k_s = \frac{ 2 \; PE_s  }{ l_c^2  }    }\)

\(\large{ l_s =  \sqrt{  \frac{ 2 \; PE_s  }{ k_s  }  }  }\)

Solve for PEs

spring force constant, ks
spring stretch length, ls

Solve for ks

spring potential energy, PEs
spring stretch length, ls

Solve for ls

spring potential energy, PEs
spring force constant, ks

Symbol English Metric
\(\large{ PE_s }\) = spring potential energy \(\large{ lbf-ft }\)  \(\large{ J }\)
\(\large{ k_s }\) = spring force constant \(\large{lbf}\) \(\large{N}\)
\(\large{ l_s }\) = spring stretch length \(\large{in}\) \(\large{mm}\)
