# Rectangle

on . Posted in Plane Geometry

• Rectangle (a two-dimensional figure) is a quadrilateral with two pair of parallel edges.
• Circumcircle is a circle that passes through all the vertices of a two-dimensional figure.
• Diagonal is a line from one vertices to another that is non adjacent.
• Polygon (a two-dimensional figure) is a closed plane figure for which all edges are line segments and not necessarly congruent.
• Quadrilateral (a two-dimensional figure) is a polygon with four sides.
• a ∥ c
• b ∥ d
• a = c
• b = d
• ∠A = ∠B = ∠C = ∠D = 360°
• 4 interior angles are 90°
• 2 diagonals
• 4 edges
• 4 vertexs

## Area of a Rectangle formula

$$\large{ A_{area} = a\;b }$$
Symbol English Metric
$$\large{ A_{area} }$$ = area  $$\large{ in^2 }$$  $$\large{ mm^2 }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

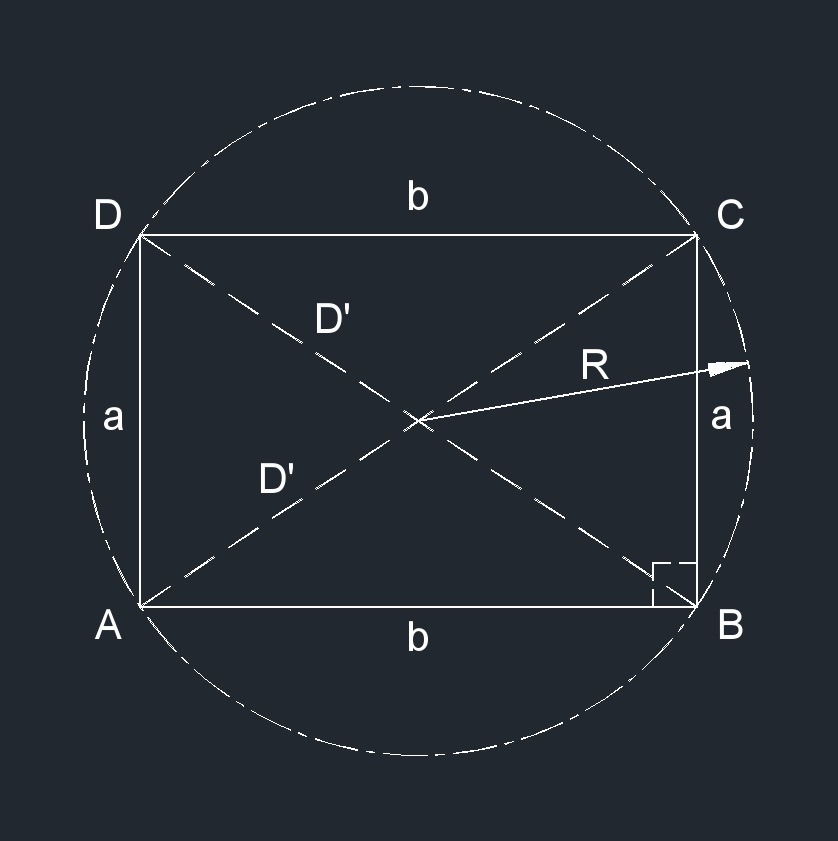

## Circumcircle Radius of a Rectangle formulas

$$\large{ R = \frac{D'}{2} }$$

$$\large{ R = \frac{ \sqrt{ a^2 \;+\; b^2 } }{ 2 } }$$

Symbol English Metric
$$\large{ R }$$ = outside radius $$\large{ in }$$ $$\large{ mm }$$
$$\large{ D' }$$ = diagonal $$\large{ in }$$ $$\large{ mm }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Diagonal of a Rectangle formula

$$\large{ D' = \sqrt {a^2 + b^2 } }$$
Symbol English Metric
$$\large{ D' }$$ = diagonal $$\large{ in }$$ $$\large{ mm }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

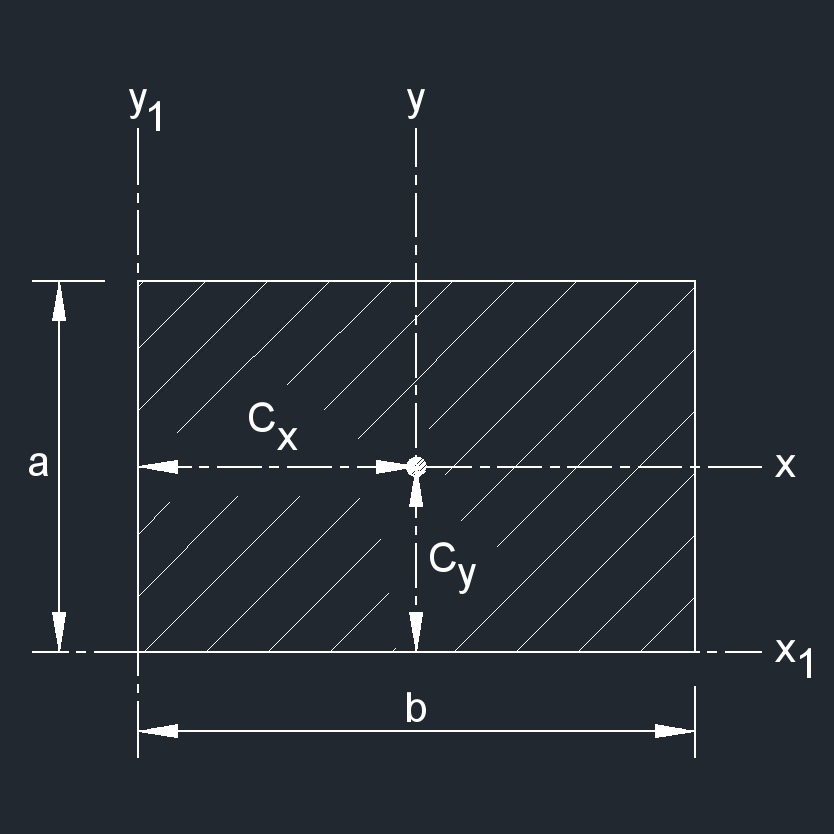

## Distance from Centroid of a Rectangle formulas

$$\large{ C_x = \frac{ b }{ 2 } }$$

$$\large{ C_y = \frac{ a }{ 2} }$$

Symbol English Metric
$$\large{ C }$$ = distance from centroid $$\large{ in }$$ $$\large{ mm }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Elastic Section Modulus of a Rectangle formulas

$$\large{ S_x = \frac{ a^2\; b }{ 6 } }$$

$$\large{ S_y = \frac{ a\;b^2 }{ 6 } }$$

Symbol English Metric
$$\large{ S }$$ = elastic section modulus $$\large{in^3}$$ $$\large{mm^3}$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Perimeter of a Rectangle formulas

$$\large{ P = 2\;a + 2\;b }$$

$$\large{ P = 2\; \left( a + b \right) }$$

Symbol English Metric
$$\large{ P }$$ = perimeter $$\large{ in }$$ $$\large{ mm }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Plastic Section Modulus of a Rectangle formulas

$$\large{ Z_x = \frac{ a^2 \;b }{ 4 } }$$

$$\large{ Z_y = \frac{ a\;b^2 }{ 4 } }$$

Symbol English Metric
$$\large{ Z }$$ = plastic section modulus $$\large{ in^3 }$$ $$\large{ mm^3 }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Polar Moment of Inertia of a Rectangle formulas

$$\large{ J_{z} = \frac{a\;b}{12} \; \left( a^2 + b^2 \right) }$$

$$\large{ J_{z1} = \frac{a\;b}{3} \; \left( a^2 + b^2 \right) }$$

Symbol English Metric
$$\large{ J }$$ = torsional constant $$\large{ in^4 }$$ $$\large{ mm^4 }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Radius of Gyration of a Rectangle formulas

$$\large{ k_{x} = \frac{ a }{ 2 \; \sqrt{3} } }$$

$$\large{ k_{y} = \frac{ b }{ 2 \; \sqrt{3} } }$$

$$\large{ k_{z} = \sqrt{ \frac{ a^2 \;+\; b^2 }{ 2\; \sqrt{3} } } }$$

$$\large{ k_{x1} = \frac{ a } { \sqrt 3 } }$$

$$\large{ k_{y1} = \frac{ b } { \sqrt 3 } }$$

$$\large{ k_{z1} = \sqrt{ \frac{ a^2 \;+\; b^2 }{ \sqrt{3} } } }$$

Symbol English Metric
$$\large{ k }$$ = radius of gyration $$\large{ in }$$ $$\large{ mm }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Second Moment of Area of a Rectangle formulas

$$\large{ I_{x} = \frac{a^3\; b}{12} }$$

$$\large{ I_{y} = \frac{a\;b^3}{12} }$$

$$\large{ I_{x1} = \frac{a^3 \;b}{3} }$$

$$\large{ I_{y1} = \frac{a\;b^3}{3} }$$

Symbol English Metric
$$\large{ I }$$ = moment of inertia $$\large{in^4}$$  $$\large{mm^4}$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$

## Side of a Rectangle formulas

$$\large{ a = \frac{P}{2} \;-\; b }$$

$$\large{ b = \frac{P}{2} \;-\; a }$$

Symbol English Metric
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$
$$\large{ P }$$ = perimeter $$\large{ in }$$ $$\large{ mm }$$

## Torsional Constant of a Rectangle formula

$$\large{ J = a^3\; b\; \left[ \frac{1}{3} \;-\; \frac{0.21\;a}{b} \; \left( 1 \;-\; \frac{ a^4 }{ 12\;b^4 } \right) \right] }$$
Symbol English Metric
$$\large{ J }$$ = torsional constant $$\large{ in^4 }$$ $$\large{ mm^4 }$$
$$\large{ a, b, c, d }$$ = edge $$\large{ in }$$ $$\large{ mm }$$
