Sound Energy

on . Posted in Classical Mechanics

Tags: Energy Equations Kinetic Energy Equations

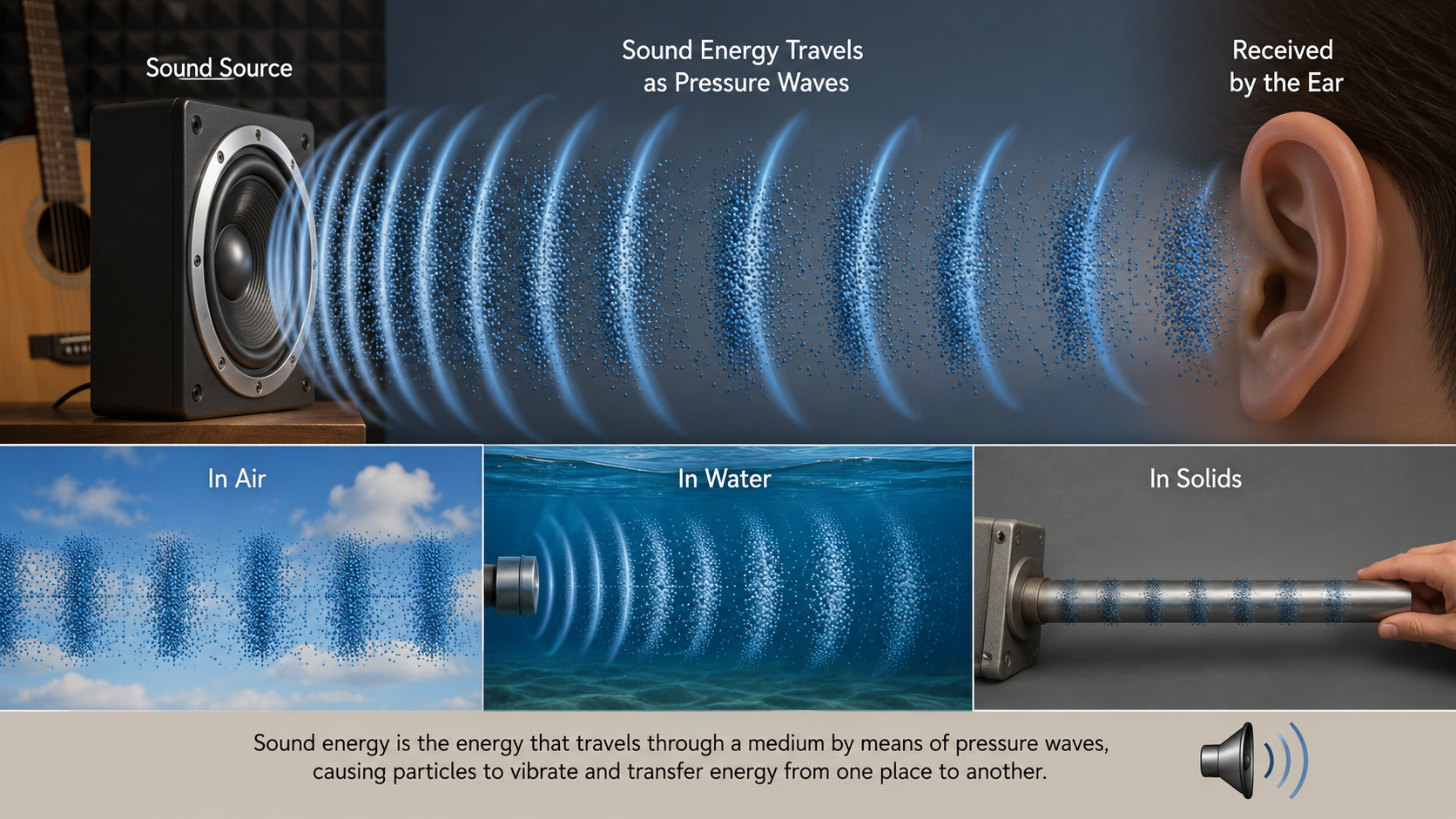

Sound energy, abbreviated as \(E_s\), is the energy that travels through a medium by means of pressure waves, such as air, water, or solids.  The energy carried by a sound wave depends on the properties of the medium, such as its density and volume, as well as the amplitude of the pressure wave.  Sound waves can carry a wide range of energy, from very low levels of intensity, such as a whisper, to very high levels of intensity, such as a jet engine or a thunderclap.  This formula is important in the study of acoustics and the design of sound systems, such as speakers and microphones.  It is also used in the analysis of noise pollution and the development of noise reducing technologies.

Key Points about sound energy

  • Vibration  -  Sound energy originates from the vibration or oscillation of objects.  When an object vibrates, it disturbs the particles in the surrounding medium, causing them to move in a wave-like pattern.
  • Propagation  -  Sound waves travel through a medium, such as air, water, or solids, by compressing and rarefying the particles in the medium. As the particles vibrate back and forth, they transfer the energy of the original vibration over a distance.
  • Mechanical Nature  -  Sound energy is a form of mechanical energy because it involves the motion of particles in a medium.  It requires a medium to travel through, and it cannot propagate in a vacuum.
  • Frequency and Pitch  -  The frequency of a sound wave determines its pitch. Higher frequencies result in higher-pitched sounds, while lower frequencies result in lower-pitched sounds.
  • Amplitude and Loudness  -  The amplitude of a sound wave determines its loudness. Greater amplitude corresponds to a louder sound.

Sound energy is important in various contexts

  • Communication  -  Sound is a fundamental means of communication for humans and many animals.  Speech, music, and various vocalizations are examples of how sound is used for communication.
  • Detection and Warning  -  Sound can be used to detect changes in the environment, such as alarms, sirens, and warning signals.
  • Sonar and Ultrasound  -  Sound waves are used in applications like sonar and ultrasound to gather information about objects and environments.
  • Entertainment  -  Sound is a crucial component of entertainment, including music, movies, and video games.
  • Scientific Exploration  -  Sound waves can be used to study the properties of materials, measure distances, and analyze the composition of objects.


Sound Energy formula

\(\large{ E_s = \frac{1}{2} \; \rho \; V \; \Delta p^2 }\)     (Sound Energy)

\(\large{ \rho = \frac{ 2 \; E_s }{ V \; \Delta p^2 } }\)

\(\large{ V = \frac{ 2 \; E_s }{ \rho \; \Delta p^2 } }\)

\(\large{ \Delta p =  \sqrt{  \frac{ 2 \; E_s }{ \rho \; V }  }  }\)

Symbol English Metric
\(\large{ E_s }\) = sound energy \(\large{lbf-ft}\) \(\large{J}\)
\(\large{ \rho }\)   (Greek symbol rho) = density of the media \(\large{\frac{lbm}{ft^3}}\) \(\large{\frac{kg}{m^3}}\)
\(\large{ V }\) = volume of the media that the sound wave travels through \(\large{ ft^3 }\) \(\large{ m^3 }\)
\(\large{ \Delta p }\) = the amplitude of the pressure wave \(\large{\frac{lbf}{in^2}}\) \(\large{ Pa }\)
