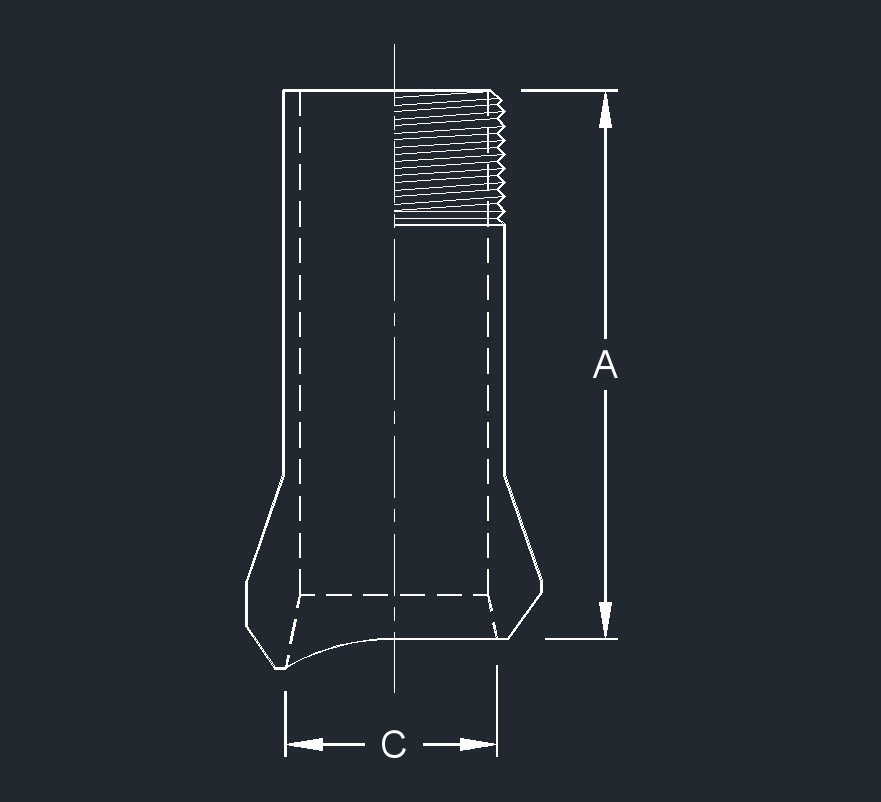

Nipolet - ANSI, FCS (in)
Nipolet - ANSI, FCS (in) | |||||||
---|---|---|---|---|---|---|---|
Outlet Size (NPS) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
XS | A | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
C | 15/16 | 1 3/16 | 1 7/16 | 1 3/4 | 2 | 2 9/16 | |
XXS | A | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
C | 9/16 | 3/4 | 1 | 1 5/16 | 1 1/2 | 1 11/16 |
- Nipolet® is a registered trademark to Bonney Forge
- Class 3000 - for use with Sch. 80 pipe.
- Dimensions and tolerances in accordance with ANSI/ASME B16.11 and MSS SP-97.
- Specifications for carbon steel forgings in accordance with ASTM A105.
- Threads in accordance with ANSI/ASME B1.20.1.
- Each outlet size is available to fit any run curvature.
- Outlet combinations fit a number of run pipe sizes, and fittings are marked accordingly.
- Nipolets come in 3 1/2", 4 1/2", 5 1/2" and 6 1/2" lengths.
- XS and XXS represent the nipple part of the nipolet.
