Valve - Ball, Reduced Port, ANSI Class 600, CS (Skt / Thd) (in)

on . Posted in Ball Valve Datasheets

  • Dimensions and tolerances in accordance with ANSI/ASME B16.5 for sizes 1/2" to 24".
  • Face to face dimensions per ANSI/ASME B16.10.
  • Preparation of buttweld end in accordance with ANSI/ASME B16.25.
  • Threads in accordance with ANSI/ASME B1.20.1.
  • Socket dimensions and tolerances in accordance with ANSI/ASME B16.11.
  • Valve dimensions and tolerances in accordance with ANSI/ASME B16.34.
  • Valve weight, open height and handwheel diameter are approximate and vary between manufacture's. Contact manufacturer for specific information.
  • Pressure Temperature Rating:
    • Carbon Steel
    • ASTM A216 Grade WCB
    • 1480 psi @ -20°F to 100°F

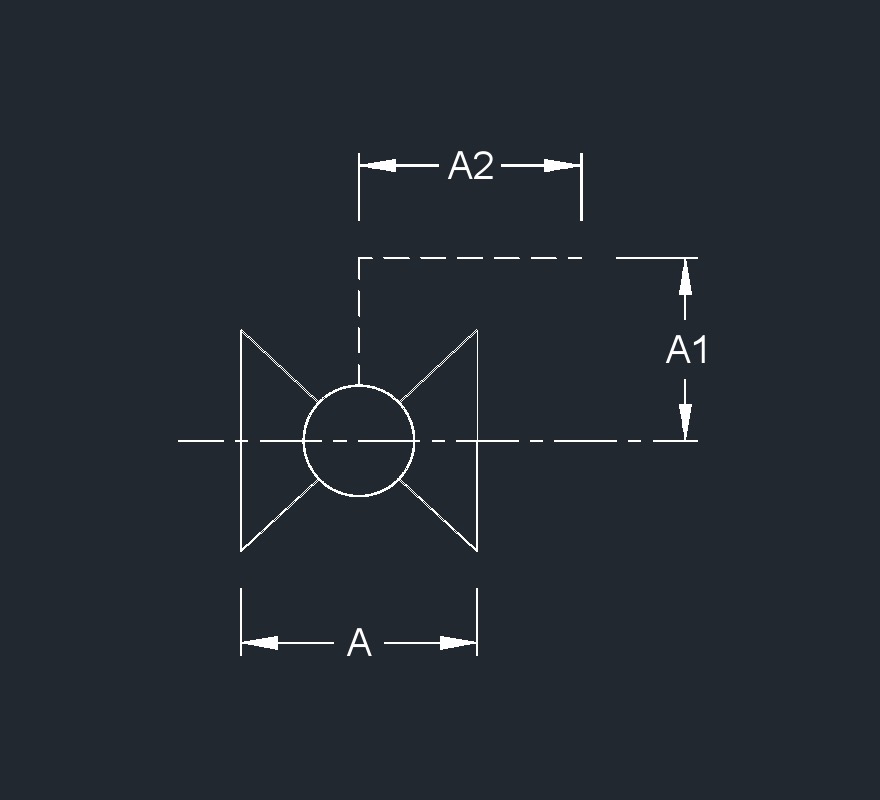

 data skt ball valveData thd ball valve 1

Valve Size

(in)

Face to Face Dimension (in)Approx. Handle (in)Approx. Weight (lb)
Threaded

A

Socket

A

Height

A1

Length

 A2

Threaded



Socket



1/2 2 5/8 2 5/8 4 4 4 4
3/4 3 1/2 3 1/2 5 5 5 5
1 3 3/4 3 3/4 6 7 9 9
1 1/2 4 7/8 4 7/8 6 7 16 16
2 6 6 7 8 26 26
2 1/2 - - - - - -
3 7 1/4 7 1/4 8 12 43 43
4 12 12 12 20 90 90
