Simple Beam - Two Equal Point Loads Unequally Spaced formulas |
||
|
\( R_1 \;=\; V_1 \; ( max.\; when\; a < b ) \;=\; \dfrac{ P }{ L } \cdot ( L - a + b ) \) \( R_2 \;=\; V_2 \; ( max.\; when\; a < b ) \;=\; \dfrac{ P }{ L} \cdot ( L - b + a ) \) \( V_x \; [\; a < x < ( L - b ) \;] \;=\; \dfrac{ P}{L} \cdot ( b - a ) \) \( M_1 \; ( max.\; when\; a > b ) \;=\; R_1 \cdot a \) \( M_2 \; (max.\; when\; a < b ) \;=\; R_2 \cdot b \) \( M_x \; ( max.\; when\; x < a ) \;=\; R_1 \cdot x \) \( M_x \; [\; max. \; when \; a < x < ( L - b ) \;] \;=\; (R_1 \cdot x) - (\;P \cdot ( x - a )\;) \) |
||
| Symbol | English | Metric |
| \( R \) = reaction load at bearing point | \(lbf\) | \(N\) |
| \( V \) = maximum shear force | \(lbf\) | \(N\) |
| \( M \) = maximum bending moment | \(lbf - in\) | \(N - mm\) |
| \( P \) = total concentrated load | \(lbf\) | \(N\) |
| \( L \) = span length of the bending member | \(in\) | \(mm\) |
| \( a, b \) = length to point load | \(in\) | \(mm\) |
| \( x \) = horizontal distance from reaction to point on beam | \(in\) | \(mm\) |
Diagram Symbols

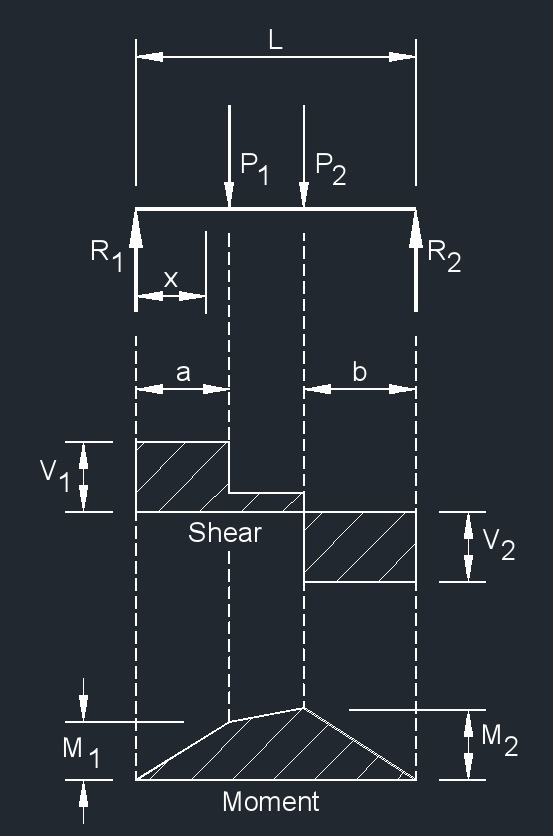

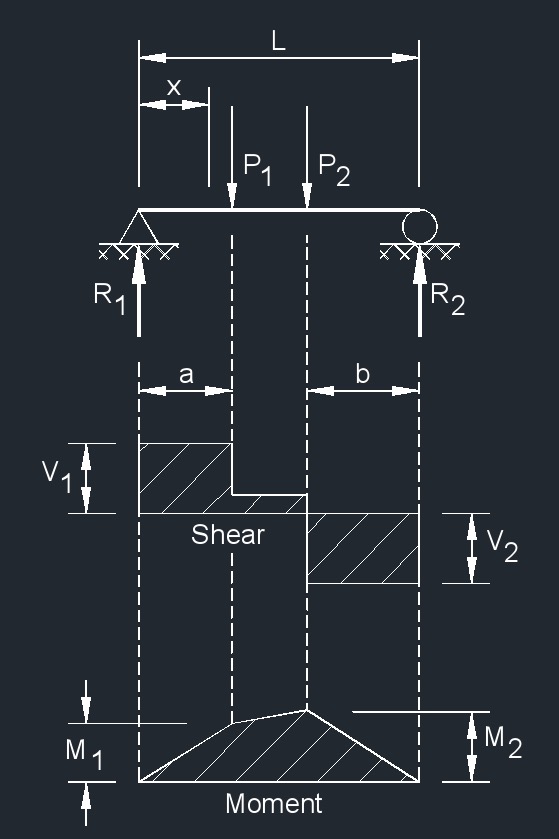

Bending moment diagram (BMD) - Used to determine the bending moment at a given point of a structural element. The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
Free body diagram (FBD) - Used to visualize the applied forces, moments, and resulting reactions on a structure in a given condition.
Shear force diagram (SFD) - Used to determine the shear force at a given point of a structural element. The diagram can help determine the type, size, and material of a member in a structure so that a given set of loads can be supported without structural failure.
Uniformly distributed load (UDL) - A load that is distributed evenly across the entire length of the support area.
