2 Overlapping Circles

on . Posted in Plane Geometry

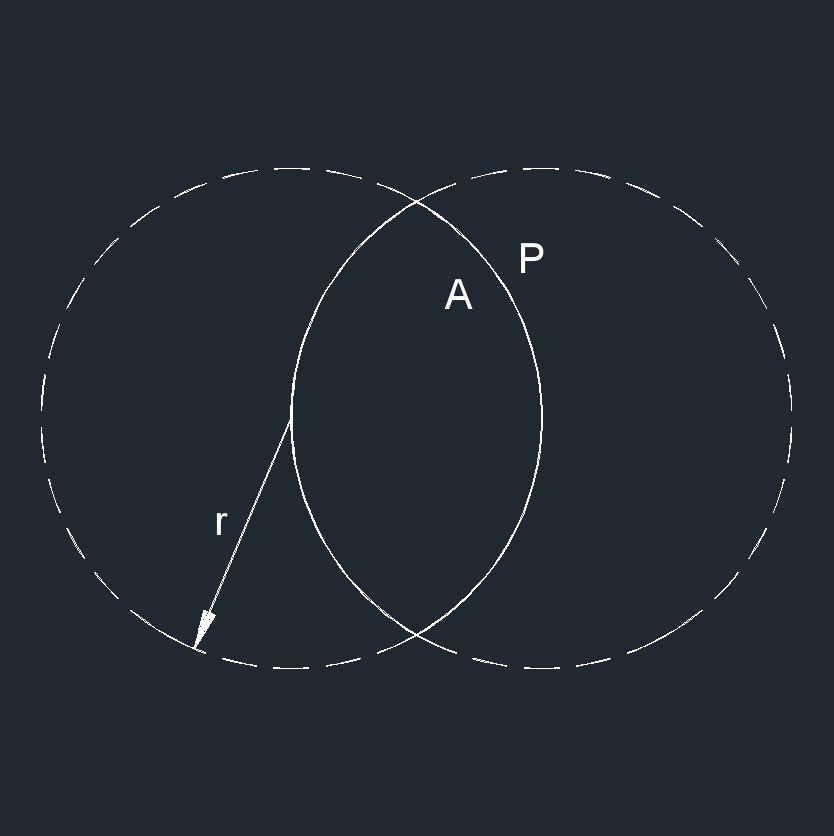

  • 2 overlapping circles 12 overlapping circles (a two-dimensional figure) with equal length arcs connecting at the vertices.



Area of 2 Overlapping Circles formula

\( A \;=\; \left[  \left(2 \; \frac{\pi}{3} \right) - \sqrt{ \frac{3}{4} }\;\; \right] \; r^2  \)
Symbol English Metric
\(\large{ A }\) = area \(ft\) \(m\)
 \( \pi \) = Pi \(3.141 592 653 ...\)
 \( r \) = radius \(ft\) \(m\)



Perimeter of 2 Overlapping Circles formula

\( P \;=\; \frac{4}{3} \; \pi \; r \)
Symbol English Metric
\( P \) = perimeter \(ft\) \(m\)
 \( \pi \) = Pi \(3.141 592 653 ...\)
 \( r \) = radius \(ft\) \(m\)
