Flange Bolt Datasheets

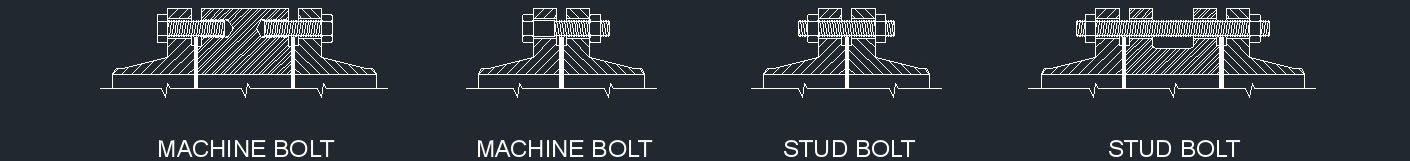

flg bolt datasheet banner 1A flange bolt is one of two components that is used to hold the flanges together.  They are subjected to a predefined torque which is designed to stretch the bolt out a little bit.  The reason for this is that there needs to be a certain amount of force to hold the flanges together when the internal pressure is high.  There  is a very specific procedure that is used when torquing the bolts

  • FB01249FB01250A stud is threaded either on both ends or the full length of the stud.
  • Studs both have American National Course Threads.
  • Length of stud bolts do not include the height of the point.
  • Length of stud bolts when used with lap joint flanges will depend upon the thickness of the lap joint stub end.
  • ANSI 150 Lb. and 300 Lb. weld neck flange has a 1/16 inch raised face.
  • ANSI 400 Lb. to 2500 Lb. weld neck flange has a 1/4 inch raised face.



Flange Bolt Sizes - 1/2" through 24"

data bolt machine

data bolt stud

data bolt machine

data bolt stud







Piping Designer Logo 1

Display #
Title
Bolt - Bleed Ring, ANSI Class 150-2500 (in)
Bolt - Flange, ANSI Class 150 (in)
Bolt - Flange, ANSI Class 150-2500 (in)
Bolt - Flange, ANSI Class 1500 (in)
Bolt - Flange, ANSI Class 2500 (in)
Bolt - Flange, ANSI Class 300 (in)
Bolt - Flange, ANSI Class 400 (in)
Bolt - Flange, ANSI Class 600 (in)
Bolt - Flange, ANSI Class 900 (in)
Bolt Threads per Inch (in)

Tags: Pipe Flange Datasheets
