Plug Valve

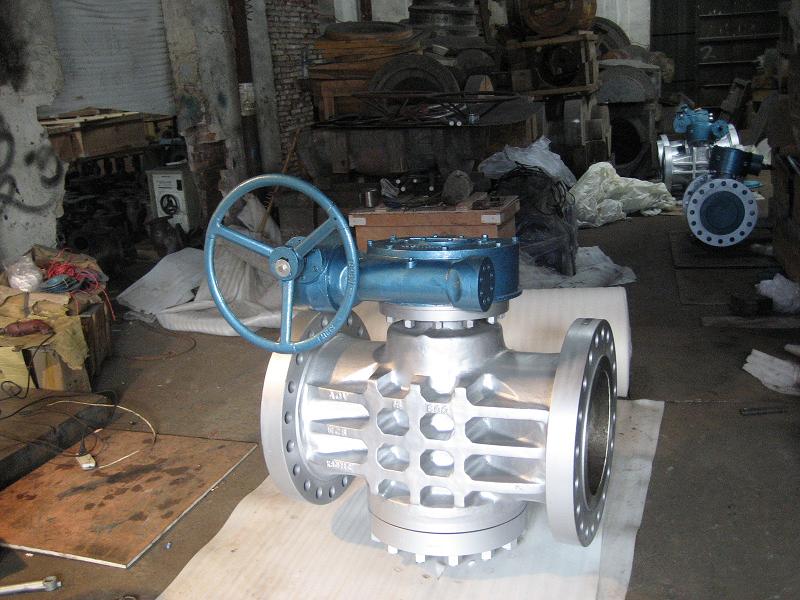

Duplex Plug Valve with a handwheelA plug valve is a quarter turn valve that has a conical or cylindrical plug that is rotated within the valve body to stop flow when needed. Plug valves function similar to a ball valve where the plug has an opening in the plug that allows fluid to flow through the valve when it is open.
Plug valves can be used as a double block and bleed valve by installing a bleeder on the body of the valve. When the valve is closed, the bleeder dcan be opened to ensure there is zero flow through the valve.
Article Links |
Plug Valve Types
- Eccentric Plug Valve - These valves are used for numerous flow control and isolation applications that basically includes clean and dirty water, sewage, sludge and slurries, and etc. The plug has no contact with its seat until it turns within a few degrees of the shutoff position. As the plug contacts into the seat, the seating surfaces dynamically align to achieve shutoff.
- Expanding Plug Valve - These valves uses multiple components tand a complex rotation motion that helps in avoiding wear or abrasions to the seals. They are a good fit for preventing product contamination in applications that do not require double isolation. In an expanding plug valve, the slips are retracted from the wall prior to completing the quarter turn, so you have no friction. Less friction means less wear, and maintenance over time.
- Lubricated Plug Valve - The plug is designed with grooves, which retain a lubricant (base oil and viscosity improver) to seal and lubricate the valve and prevent stricking and provide a hydraulic jacking force to lift the plug within the body. This reduces the force required for rotary operation and assists in sealing the surface of the valve stem. The lubricant is injected into the valve under pressure to reduce friction and to provide a seal between the valveās seating surfaces. Lubricated plug valves are high maintenance as they need to be lubricated regularly.
- Non-lubricated Plug Valve - Non-lubricated plug valves are usually used for lower pressure lines, and their valve seats tend to deteriorate quicker from the wear and tear of dust, dirt and other debris, compared to those on the lubricated plug valves. Non-lubricated plug valves are often chosen for use over lubricated plug valves because they require minimal maintenance.

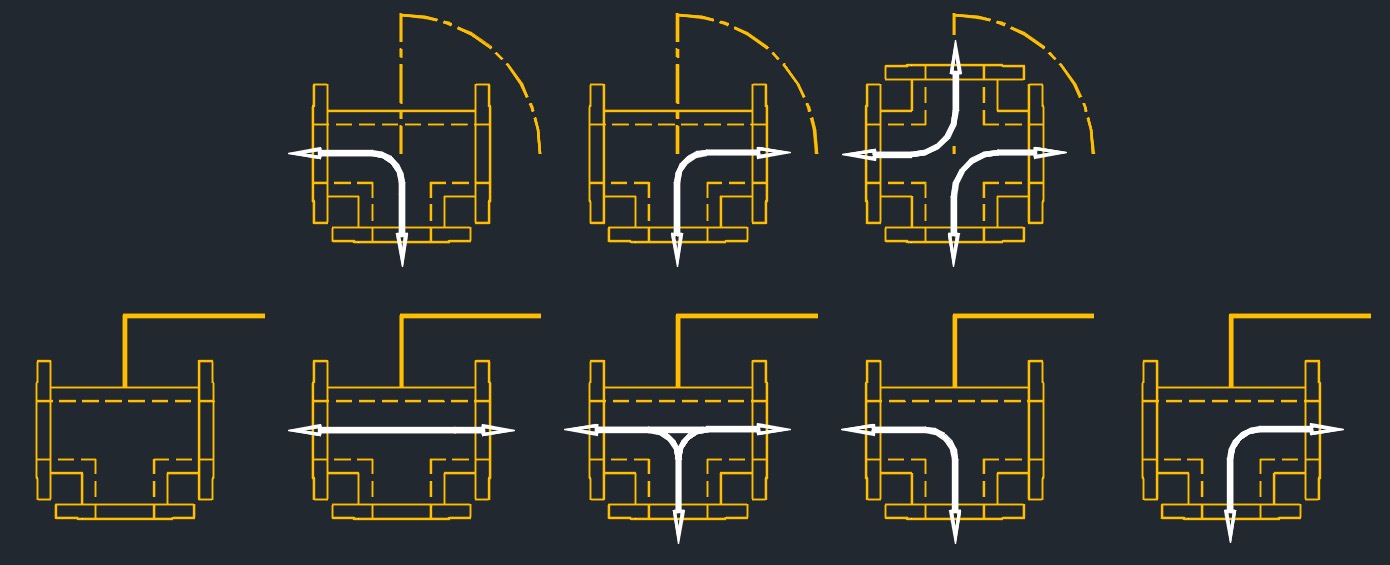

Multi-port Plug Valve - One 3-way or 4-way multiport valve may be used in place of two, three or four straightway valves, and in most cases will also eliminate other fittings such as tees and elbows. Multi-port valves have ports arranged so that when the plug is turned from one position to another, the channels previously in connection will be entirely closed before new channels begin to open. This will preventing mixture of fluids or loss of pressure.

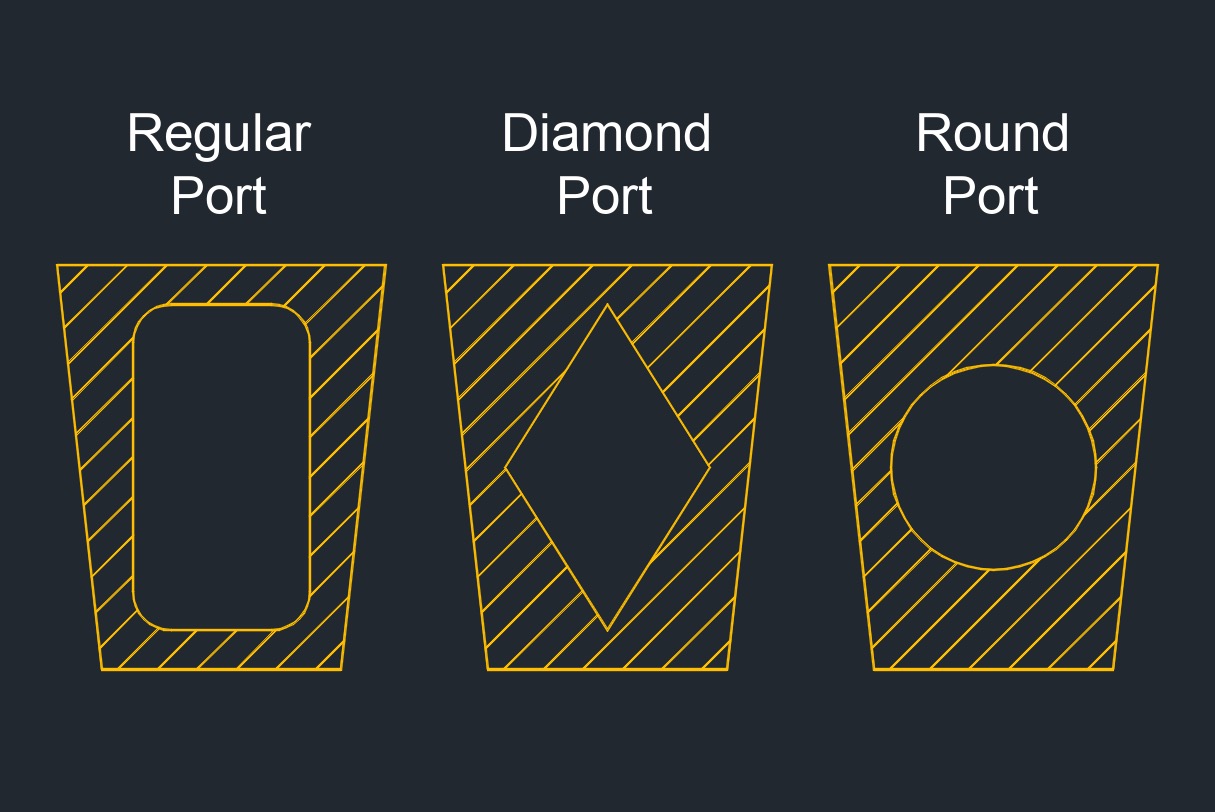

Plug Valve Port Types
- Rectangular Port - The most common port shape for plug valve. The rectangular port represents at least 70% of the cross-sectional area of the corresponding pipe.
- Diamond Port - Has a diamond-shaped port through the plug. The port is venturi restricted flow type. The design is well suited for throttling service.
- Round Port - Has a round port through the plug. If the diameter of the port is the same as or larger than the inside diameter of the pipe, this is a full port, also called full bore. If the diameter of the port is smaller than the inside diameter of the pipe, this is a standard round port.
Plug Valve Pattern Types
- Regular Pattern Plug Valve - A term usually applied to plug valves. The regular port is normally about 40% of the line pipe area. It corresponds to a venture or reduced bore valve of like nominal pipe size.
- Short Pattern Plug Valve - A valve whose face-to-face dimension is less than the API-6D standard.
- Venturi Pattern Plug Valve - A reduced bore valve. A valve having a bore smaller in diameter than the inlet or outlet. For example, an 8"x 6" x 8" ball valve has 8" inlet and outlet connections while the ball and seats are 6". The flow through a venture valve will be reduced because of the smaller port. Venturi valves can often be economically substituted for plug valves.
Plug Valve Advantages
- Widely used, especially in low pressure, small diameter and medium temperature.
- A one piece, top entry body valve design, except the top flange.
- A good choice for a lot of corrosive, abrasive and toxic fluid as well as continuously operated device.
- Good sealing performance.
- Coated bushing provides the characteristics of face sealing.
- Can be serviced in place.
- The fluid resistance is small.
- No vibration and low noise.
- Plug valve come in various body designs, three-way, four-way, five-way and six-way valve; double valve group or valves group; all kinds of jacket requirements, etc..
- This valve is suitable for many harsh media such as easy crystallization, viscosity, containing catalyst particles and corrosion fluid deposition.
- Plug valve is economical due to its high reliability, low total cost and other incomparable advantages.
Plug Valve DisAdvantages
- Requires greater force to actuate, due to high friction.
- The design of face sealing improves the requirements for driving torque.
- The plug valve investment is higher than the ball valve.
- Larger valves require the use of actuators.
Plug Valve Standards
API Standards
- API Spec 6A - Specification for Wellhead and Christmas Tree Equipment
- API Spec 6D - Specification for Pipeline Valves, End Closures, Connectors and Swivels
- API Std 599 - Metal Plug Valves - Flanged, Threaded and Welded Ends
ASME Standards
- ASME B16.5 - Pipe Flanges and Flanged Fittings: NPS 1/2 through 24
- ASME B16.10 - Face to Face and End to End Dimensions of Valves
- ASME B16.34 - Valves Flanged, Threaded and Welding End
BSI Standards
- BS 2080 - Specification for face-to-face, centre-to-face, end-to-end and centre-to-end dimensions of valves
- BS 5158 - Specification for cast iron plug valves
- BS 5353 - Specification for steel plug valves
MSS Standards
- MSS SP-61 - Hydrostatic Testing of Steel Valves
- MSS SP-78 - Cast Iron Plug Valves
- MSS SP-84 - Steel Valves - Socket Welding & Threaded Ends
